M12 Single ended precast cable

M12 5Pin、Female straight、L-coded、Single end pre cast PUR flexible cable、Black sheathed、64LS05-XXX

Ordering code:64LS05-XXX Part number :FCC-M415-0000-1L-006-PH05A1-XXX

Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments,  for example: 005=0.5m, 010=1m, 015=1.5m


Collect
Function Parameter Resource Download Related accessories

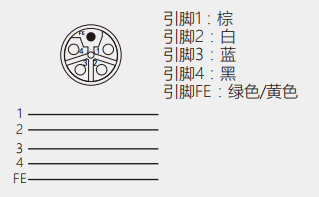

TypeM12 straight female (power connector)、5 Pin、L-coded
Maximum supply voltage AC UB48 V AC
Maximum supply voltage DC UB60 V DC
Maximum current16A
Cable color/materialBlack / PUR (Flexible cable)
Number of conductors x conductor cross-section5×1.5mm²
Degree of protection as per IEC 60529IP67
Ambient temperature Ta-25...+80 °C
Static/dynamic-25...+105 °C/-5...+105 °C（UL80°C）
