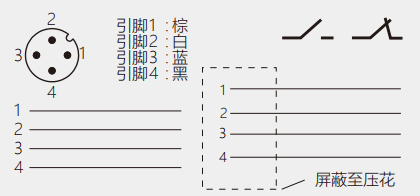

| Type | M12 male 90°、4 Pin、A-coded |
| Maximum supply voltage AC UB | 250 V AC |
| Maximum supply voltage DC UB | 250 V DC |
| Cable | Molding |
| Cable color/material | Black / PUR (Shielded; Flexible cable) |
| Number of conductors x conductor cross-section | 4×0.34mm² |
| Degree of protection as per IEC 60529 | IP68 |
| Ambient temperature Ta (static/dynamic) PUR | -40...+90 °C/-25...+90°C（UL80°C） |
| Ambient temperature Ta (static/dynamic) PUR shield | -40...+80 °C/-25...+80°C |
| Ambient temperature Ta (static/dynamic) PVC | -40...+105 °C/-5...+105°C（UL80°C） |
| Ambient temperature Ta (static/dynamic) PVC shield | -20...+105 °C（UL80°C） |
| Use | Complementary(NO/NC) |
| LED | - |
