M8 3Pin、Male straight、Single ended precast cable、Welding slag resistant PUR material、Orange sheath、63T521-XXX

M8 3Pin、Male straight、Single ended precast cable、Welding slag resistant PUR material、Orange sheath、63T521-XXX

Ordering code: 63T521-XXX
Series: FCC M313-0000-20-001-PW4325-XXX
  • Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments,  for example: 005=0.5m, 010=1m, 015=1.5m
  • Change description: "FCC M313-0000-20-001-PW4434-XXX" has been changed to "FCC M313-0000-20-001-PW4325-XXX". Please refer to the new information (can be downloaded from the official website). We apologize for any inconvenience!

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video

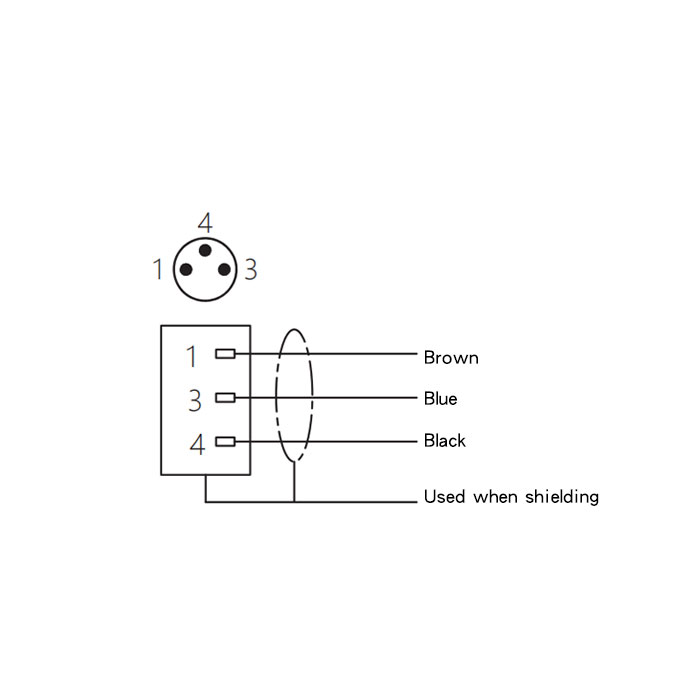

TypeM8 straight type male、3 Pin、A-coded
Maximum supply voltage AC UB60 V
Maximum supply voltage DC UB60 V
Rated current4A
CableMolding
Number of conductors x conductor cross-section3×0.25 mm²
Cable color/materialOrange/PUR (Flexible cable)
Degree of protection as per IEC 60529IP 67
Ambient temperature Ta  -25...+105 °C
