M8 4Pin、Female straight、Single ended precast cable、Welding slag resistant PUR material、Orange sheath、63T041-XXX
  • M8 4Pin、Female straight、Single ended precast cable、Welding slag resistant PUR material、Orange sheath、63T041-XXX
  • M8 4Pin、Female straight、Single ended precast cable、Welding slag resistant PUR material、Orange sheath、63T041-XXX
  • M8 4Pin、Female straight、Single ended precast cable、Welding slag resistant PUR material、Orange sheath、63T041-XXX

M8 4Pin、Female straight、Single ended precast cable、Welding slag resistant PUR material、Orange sheath、63T041-XXX

Ordering code: 63T041-XXX
Series: FCC M314-0000-10-006-PW4425-XXX
  • Remarks: xxx = cable length, which can be customized as needed when ordering. The cable length is in increments of 0.5m, for example: 005=0.5m, 010=1m, 015=1.5m
Parameter Table Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video

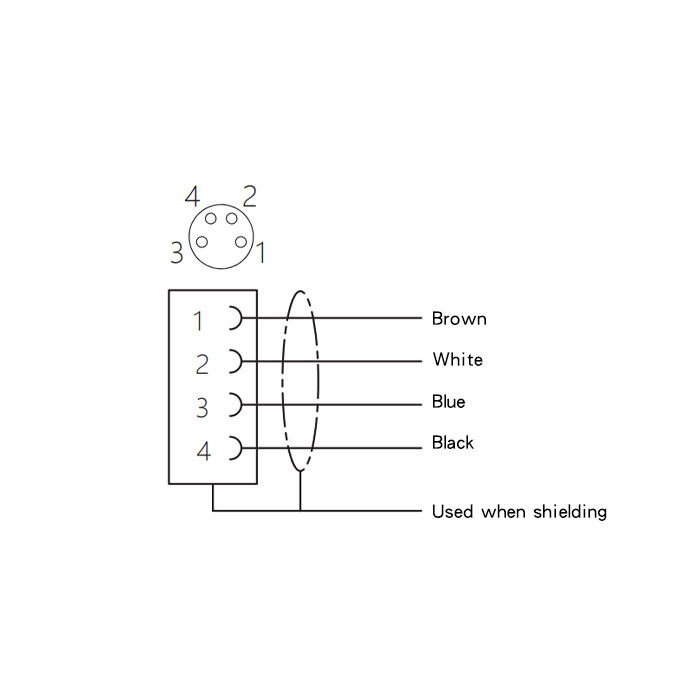

TypeM8 straight type female、4 Pin、A-coded
Maximum supply voltage AC UB60 V
Maximum supply voltage DC UB60 V
Rated current4A
CableMolding
Number of conductors x conductor cross-section4×0.25 mm²
Cable color/materialOrange/PUR (Flexible cable)
Degree of protection as per IEC 60529IP 67
Ambient temperature Ta  -25...+105 °C
