H6B shell
Home
>
Product
>
Cabinet and Wiring
>
Heavy Duty Connector
>
Shell
>
H6B shell
<
>

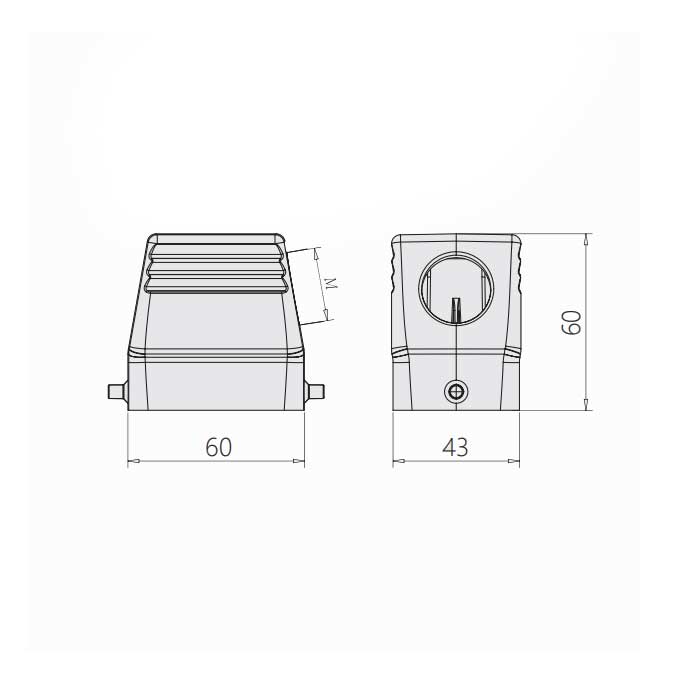

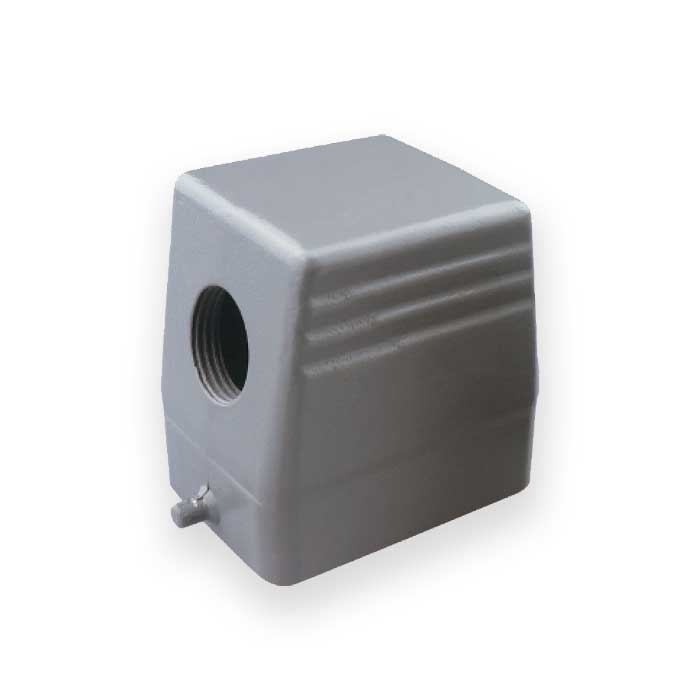

H6B-TS-M20
Ordering code: 19300061540
Part number : H6B-TS-M20
> 实现预先安装
> 可提供高集成度连接
> 可实现快速分解连接
相对于传统的连接方式，使用重载连接器具有预先安装，预先接线，防止误插，提高工作效率等优点。
Collect
contrast
Related recommendations
H6B-TS-M20
H6B-TS-M25
H6B-TSH-M25
H6B-TSH-M32
H6B-TG-M20
H6B-TG-M25
H6B-TGH-M25
H6B-TGH-M32
Function Parameter
Resource Download
Related accessories
部位
侧出 上壳
出线孔
M20
结构
-
材料
铸锌
颜色
灰色
适用温度范围
-40°C…+85°C
阻燃等级
V0
防护等级
IP65
适配芯件
HE-006;HESH-006;HEC-006;HEE-010;HDD-024
