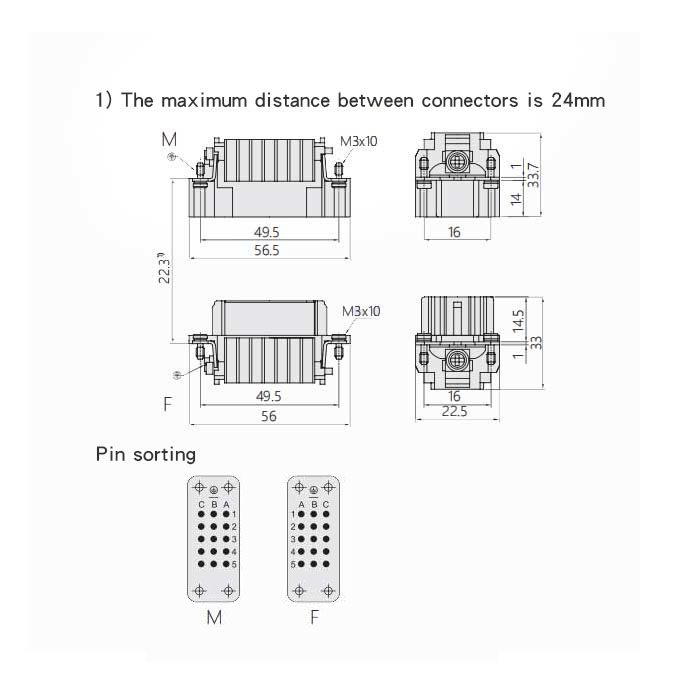

Ultra high density connector
Home
>
Product
>
Cabinet and Wiring
>
Heavy Duty Connector
>
ｉｎｓｅｒｔ
>
Ultra high density connector
<
>
Male core piece、Cold crimping、Suitable for H10A shell、HD-015-M、09210153001
Ordering code: 09210153001
Series: HD-015-M
Implement pre-installation
Highly integrated connectivity available
Allows for quick decomposition of connections
Inquiry
Related recommendations
Male core piece、Cold crimping、Suitable for H3A shell、、HD-007
Female core piece、Cold crimping、Suitable for H3A shell、HD-00
Male core piece、Cold crimping、Suitable for H3A shell、HD-008-
Female core piece、Cold crimping、Suitable for H3A shell、、HD-0
Male core piece、Cold crimping、Suitable for H10A shell、HD-015
Male core piece、Cold crimping、Suitable for H10A shell、HD-015
Male core piece、Cold crimping、Suitable for H16A shell、HD-025
Female core piece、Cold crimping、Suitable for H16A shell、HD-0
Function Parameter
Resource Download
Related Video
Type
Male core piece
Number of connector pins
15 +PE
Rated current
10A
Rated voltage
250V
Wiring form
Cold crimping
Wire gauge
0.14-2.5 mm
2
Adaptable shell
H10A
Note: Please order cold pressing needle separately
请选择区域或语言
简体中文
繁體中文
English
Nederlands
Français
Русский язык
Polski
日本語
ภาษาไทย
Deutsch
Português
español
Italiano
한어
Suomalainen
Gaeilge
dansk
Pilipino
Ελληνικά
Slovenská
Magyar
Azərbaycan
IndonesiaName
Lietuva
Svenska
Türkçe
