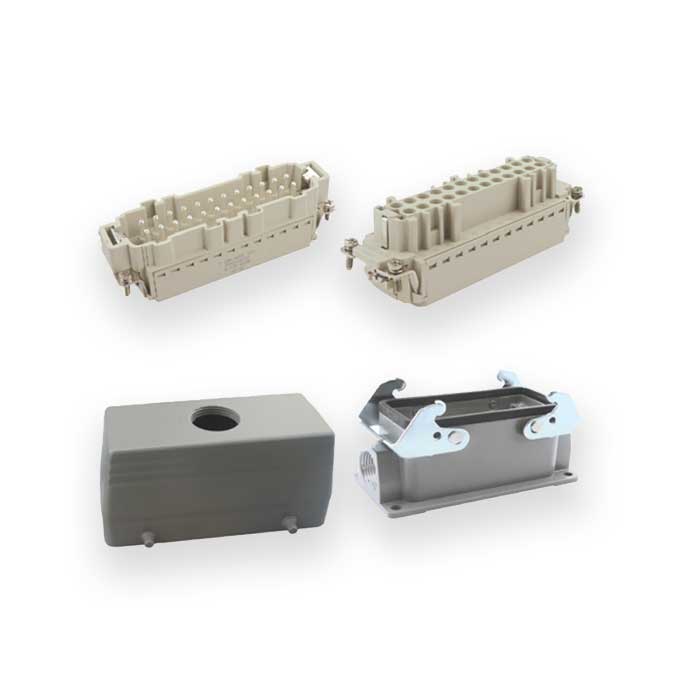

HE series 24 circuits 500V,16A、Shrapnel crimping、Surface ejection、09124104225

HE series 24 circuits 500V,16A、Shrapnel crimping、Surface ejection、09124104225

Ordering code: 09124104225
Series:
  • Implement pre-installation
  • Highly integrated connectivity available
  • Allows for quick decomposition of connections
  • Compared with traditional connection methods, the use of heavy-duty connectors has the advantages of pre-installation, pre-wiring, preventing mis-plugging, and improving work efficiency.

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video
TypeHE series 24 circuits
Rated current16A
Rated voltage500V
Wire gauge

0.14-2.5 mm²

Wiring methodQuick crimp/spring type

Lower shell

Surface mount M25 (or 2xM25) cable outlet
Upper shell

Top cable entry M25 (or M32) cable outlet

Shell colorGrey
Applicable temperature range-40°C…+85°C
Flame retardant gradeV0
Protection levelIP 65
