Type	HE series 10 circuits
Rated current	16A
Rated voltage	500V
Wire gauge	0.14-4.0 mm²
Wiring method	Screw crimp
Lower shell	Open hole installation (with cover)
Upper shell	Side cable entry M20 (or M25) cable outlet
Shell color	Grey
Applicable temperature range	-40°C…+85°C
Flame retardant grade	V0
Protection level	IP 65

10 way Standard kit

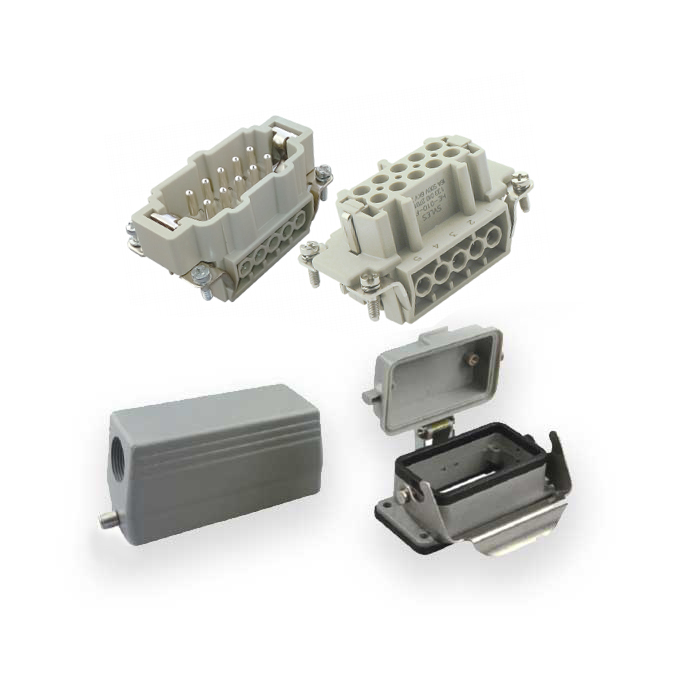

HE series 10 circuits 500V,16A、Screw crimp、Open hole with cover side outlet、09010105120

Related recommendations

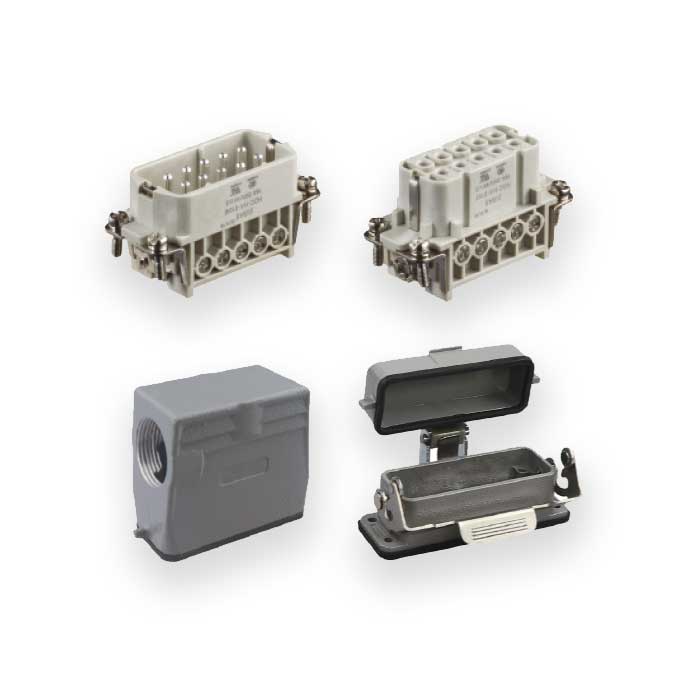

HA series 10 circuits 400V,10A、Shrapnel crimping、Open hole w

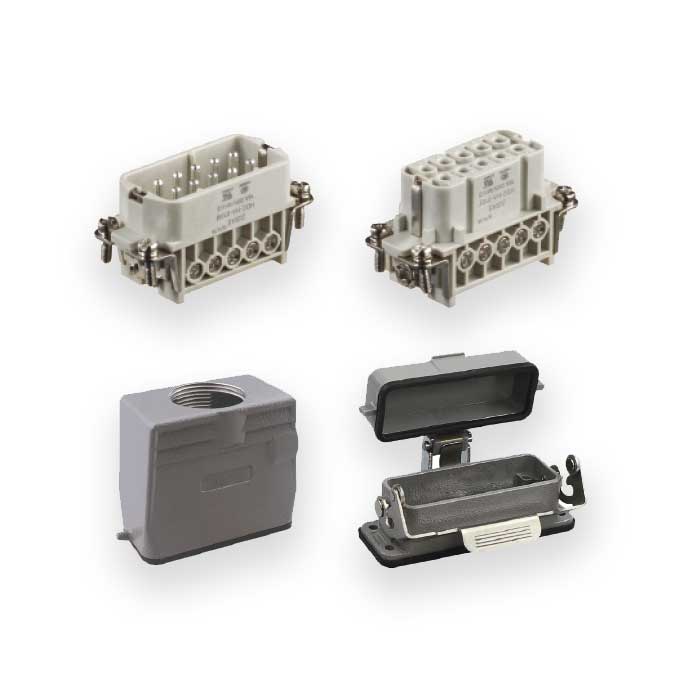

HA series 10 circuits 400V,10A、Shrapnel crimping、Open hole w

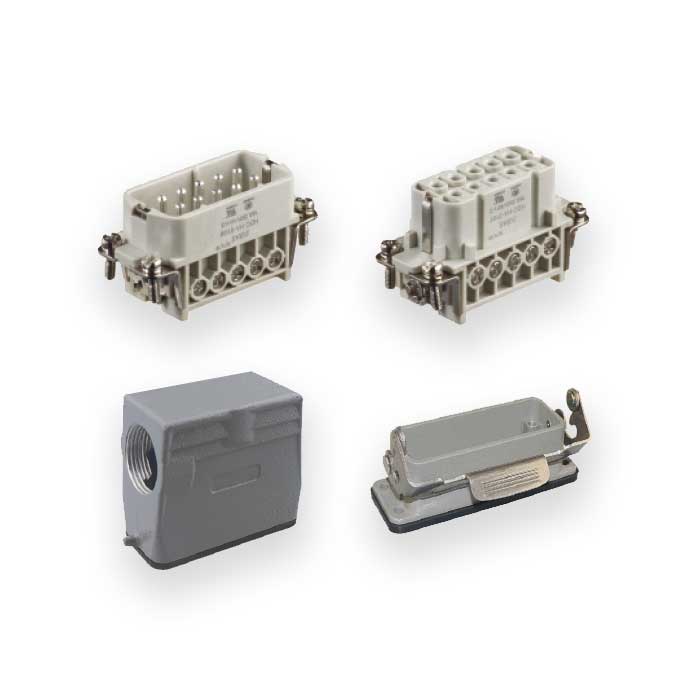

HA series 10 circuits 400V,10A、Shrapnel crimping、Surface eje

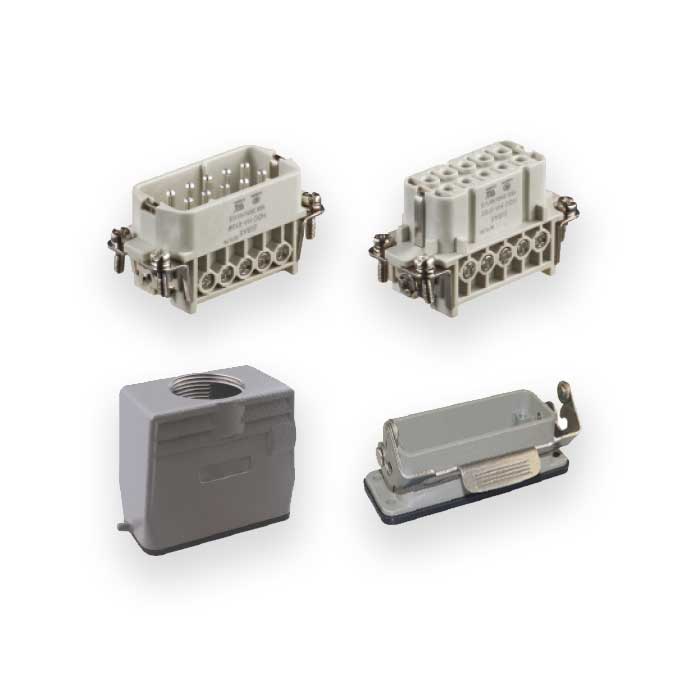

HA series 10 circuits 400V,10A、Shrapnel crimping、Surface sid

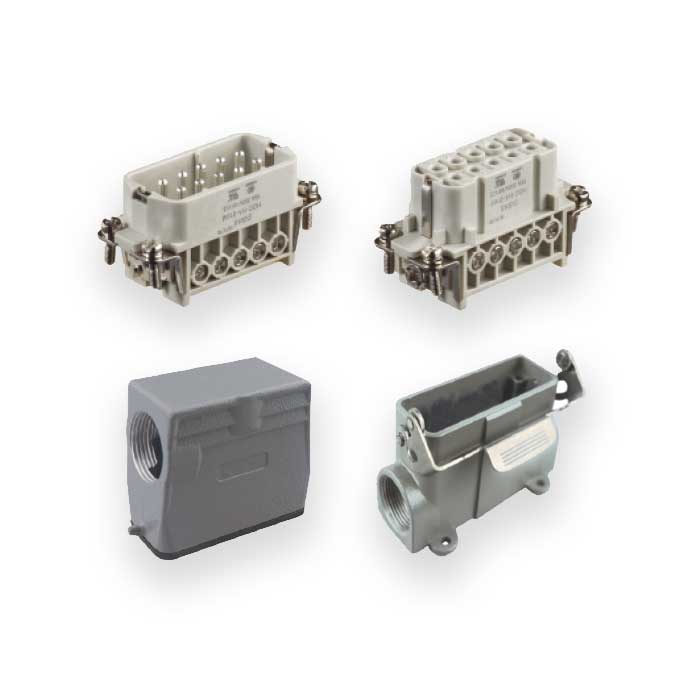

HA series 10 circuits 400V,10A、Shrapnel crimping、Open hole e

HA series 10 circuits 400V, 10A、Shrapnel crimping、Open hole

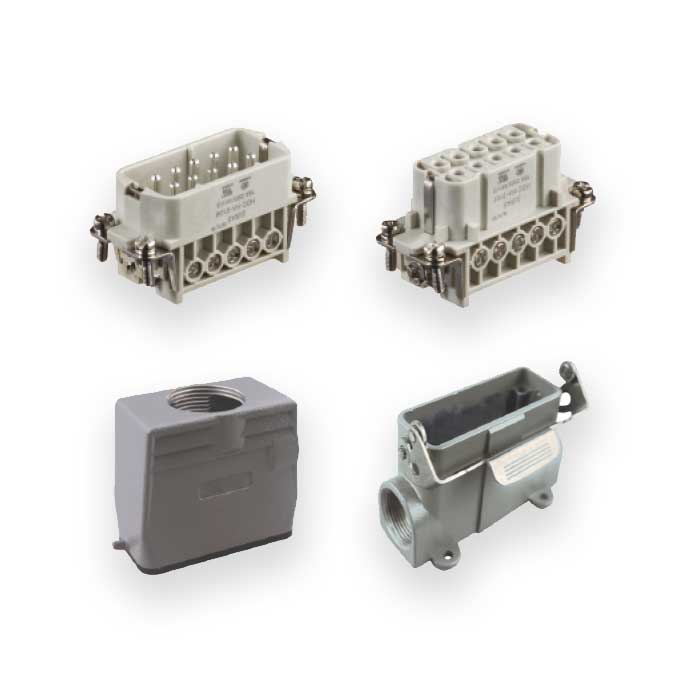

HA series 10 circuits 250V,16A、Screw crimp、Open hole side ex
