Type	HA series 10 circuits
Rated current	10A
Rated voltage	400V
Wire gauge	0.5-2.5mm²
Wiring method	Shrapnel crimping
Lower shell	Open hole installation (with cover)
Upper shell	Side cable entry M20 (or M25) cable outlet
Shell color	Grey
Applicable temperature range	-40°C…+85°C
Flame retardant grade	V0
Protection level	IP 65

10 way Standard kit

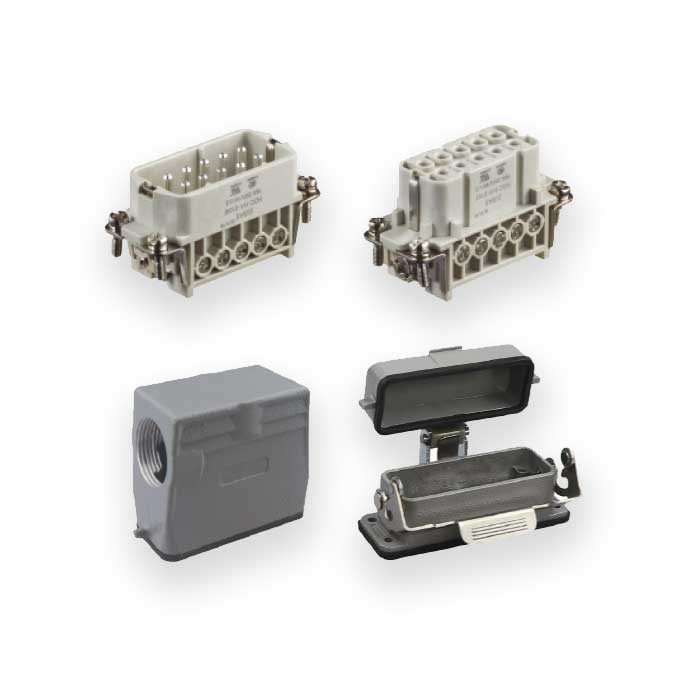

HA series 10 circuits 400V,10A、Shrapnel crimping、Open hole with cover side outlet、09110005120
