KDP direct plug-in series (square type)
Home
>
Product
>
Cabinet and Wiring
>

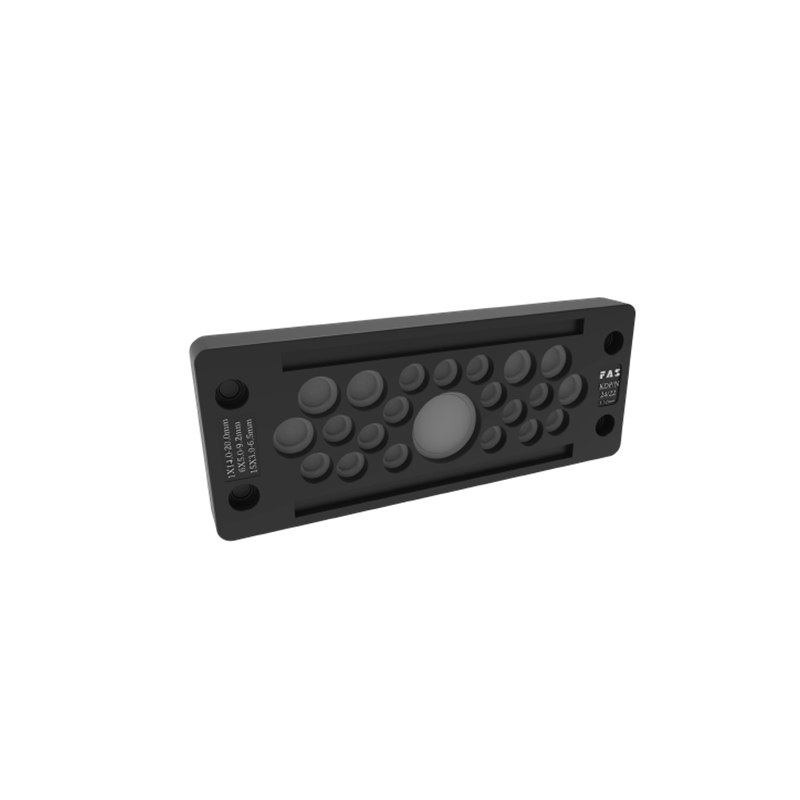

KDP direct plug-in series (square type)
<
>
Cable entry system、IP65、Flame class UL94-V0、Direct plug-in clamp board、KDP 24/22、301161
Ordering code: 301161
Series: KDP 24/22
> Extremely low space requirement
> Protection class IP65
> Built-in sealing structure
>Cut-out dimensions 112×36mm KDP
>External dimensions：L=147mm×B=59mm×15 mm
>Strain relief according DIN/EN 50262/98
>Anti-weak acid and weak base
Inquiry
Related recommendations
Cable entry system、IP65、Flame class UL94-V0、Direct plug-in
Cable entry system、IP65、Flame class UL94-V0、Direct plug-in
Cable entry system、IP65、Flame class UL94-V0、Direct plug-in
Cable entry system、IP65、Flame class UL94-V0、Direct plug-in
Cable entry system、IP65、Flame class UL94-V0、Direct plug-in
Cable entry system、IP65、Flame class UL94-V0、Direct plug-in
Cable entry system、IP65、Flame class UL94-V0、Direct plug-in
Cable entry system、IP65、Flame class UL94-V0、Direct plug-in
Function Parameter
Resource Download
Related Video
Type
KDP 24/22
Part No.
301161
Material
Halogen-free, silicone-free
Color
Black
Temperature range
-30℃ to +70℃
Protection degree
IP65
Flame class（UL94）
V0
Openings quantity
22
Wire clamping range（mm)
15×(3.0-6.5 mm)+6×(5.0-9.2 mm)+1×(14.0-20.0 mm)
请选择区域或语言
简体中文
繁體中文
English
Nederlands
Français
Русский язык
Polski
日本語
ภาษาไทย
Deutsch
Português
español
Italiano
한어
Suomalainen
Gaeilge
dansk
Pilipino
Ελληνικά
Slovenská
Magyar
Azərbaycan
IndonesiaName
Lietuva
Svenska
Türkçe
