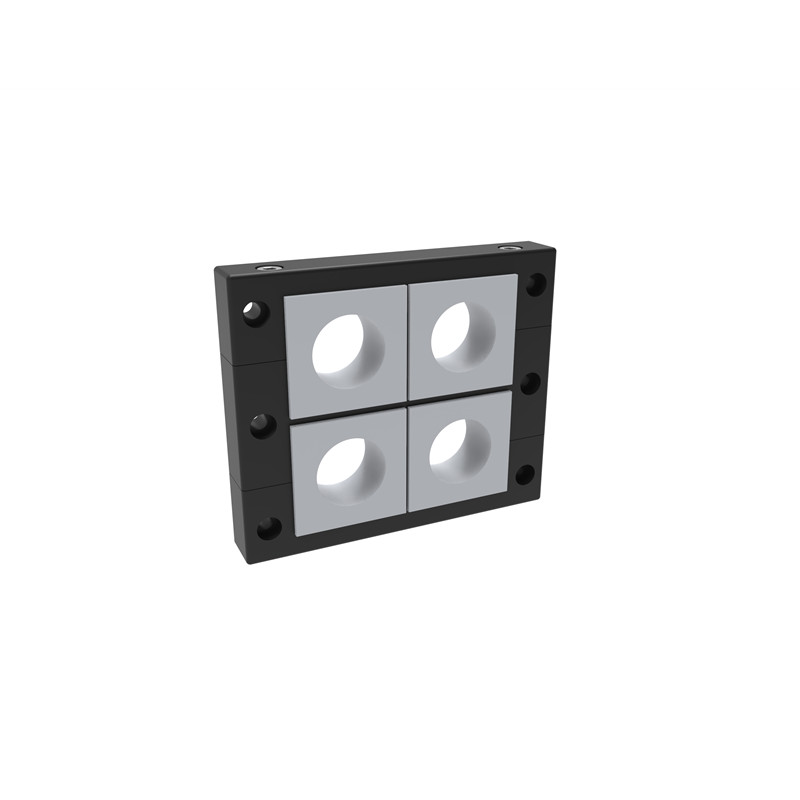

| Type | KBL 24-2MT detachable frame（Module purchased separately） |
| Frame model | KBL 24/21-2MT |
| Trame part No. | 042226 |
| Material | Polyamide (PA) |
| Flame class | UL94-V0, Self-extinguishing |
| Protection degree | IP54, With gasket and correct selection of the cable inserts |
| Temperature | -40°C ... +90°C (Static) |
| Properties | Halogen-free, silicone-free |
| KT (small) module quantity | 18 |
| KT (large) module quantity | 3 |
| Height | 17 mm |
