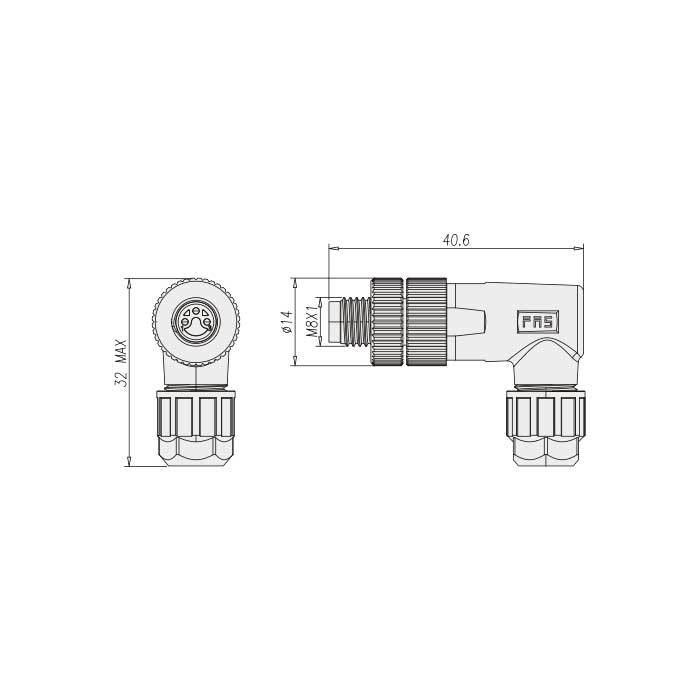

| Type | M8 right angle male、3 Pin、A-coded |
| Maximum supply voltage AC UB | 60 V |
| Maximum supply voltage DC UB | 60 V |
| Rated current | 4A max |
| Cable | User-fabricated |
| Number of wires × wire cross-sectional area | 3×0.14...0.75 mm² (bare wire) / 3×0.14...0.34mm² (tube type terminal) |
| Cable diameter | Ø 2...5 mm |
| Connection method | Push-in terminal |
| Degree of protection as per IEC 60529 | IP 67 |
| Ambient temperature Ta | -40...+85 °C |
