M12 Single ended precast cable

M12 3Pin、Male 90°、Single end pre cast PUR flexible cable、With shielding、Black sheathed、64S505-XXX

Ordering code:64S505-XXX Part number :FCC M423-0000-2A-001-PS0334-XXX

Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments,  for example: 005=0.5m, 010=1m, 015=1.5m


Collect
Function Parameter Resource Download Related accessories

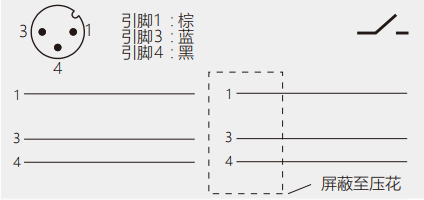

TypeM12 male 90°、3 Pin、A-coded
Maximum supply voltage AC UB250 V AC
Maximum supply voltage DC UB250 V DC
CableCasting
Cable color/materialBlack / PUR (Shielded; Flexible cable)
Number of conductors x conductor cross-section3×0.34mm²
Degree of protection as per IEC 60529IP68
Ambient temperature Ta (static/dynamic) PUR-40...+90 °C/-25...+90°C（UL80°C）
Ambient temperature Ta (static/dynamic) PUR shield-40...+80 °C/-25...+80°C
Ambient temperature Ta (static/dynamic) PVC-40...+105 °C/-5...+105°C（UL80°C）
Ambient temperature Ta (static/dynamic) PVC shield-20...+105 °C（UL80°C）
UseNormally open（NO）
LED-
