Ethernet protocol

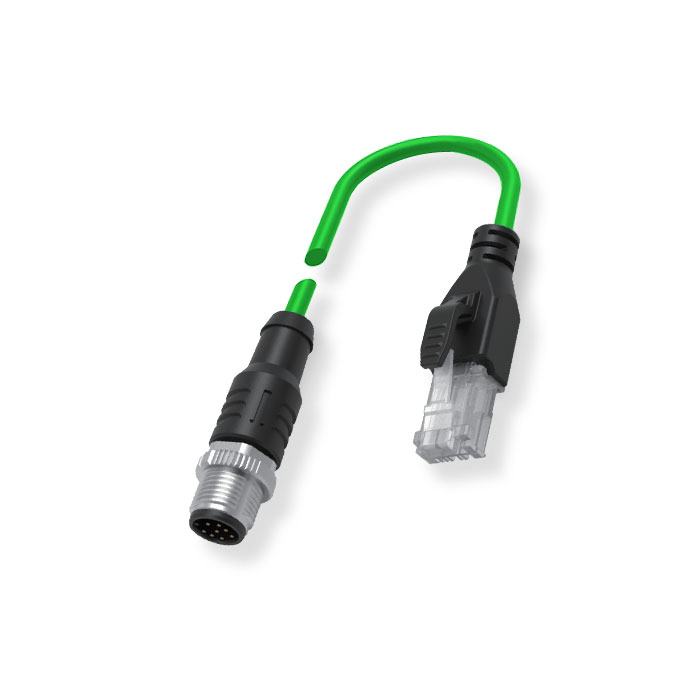

M12 8Pin straight male（ X-coded）/RJ45 male、Dual end pre cast TPE flexible cable、With shielding、Green sheath、Ethernet Cat.6a 10Gbps、0CF461-XXX
M12 8Pin straight male（ X-coded）/RJ45 male、Dual end pre cast TPE flexible cable、With shielding、Green sheath、Ethernet Cat.6a 10Gbps、0CF461-XXX
M12 8Pin straight male（ X-coded）/RJ45 male、Dual end pre cast TPE flexible cable、With shielding、Green sheath、Ethernet Cat.6a 10Gbps、0CF461-XXX
M12 8Pin straight male（ X-coded）/RJ45 male、Dual end pre cast TPE flexible cable、With shielding、Green sheath、Ethernet Cat.6a 10Gbps、0CF461-XXX
M12 8Pin straight male（ X-coded）/RJ45 male、Dual end pre cast TPE flexible cable、With shielding、Green sheath、Ethernet Cat.6a 10Gbps、0CF461-XXX
M12 8Pin straight male（ X-coded）/RJ45 male、Dual end pre cast TPE flexible cable、With shielding、Green sheath、Ethernet Cat.6a 10Gbps、0CF461-XXX

M12 8Pin straight male（ X-coded）/RJ45 male、Dual end pre cast TPE flexible cable、With shielding、Green sheath、Ethernet Cat.6a 10Gbps、0CF461-XXX

Ordering code:0CF461-XXX Part number :FCC-M418-E838-50-038-PHGC6A-XXX

Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments,  for example: 005=0.5m, 010=1m, 015=1.5m

Collect
Function Parameter Resource Download Related accessories

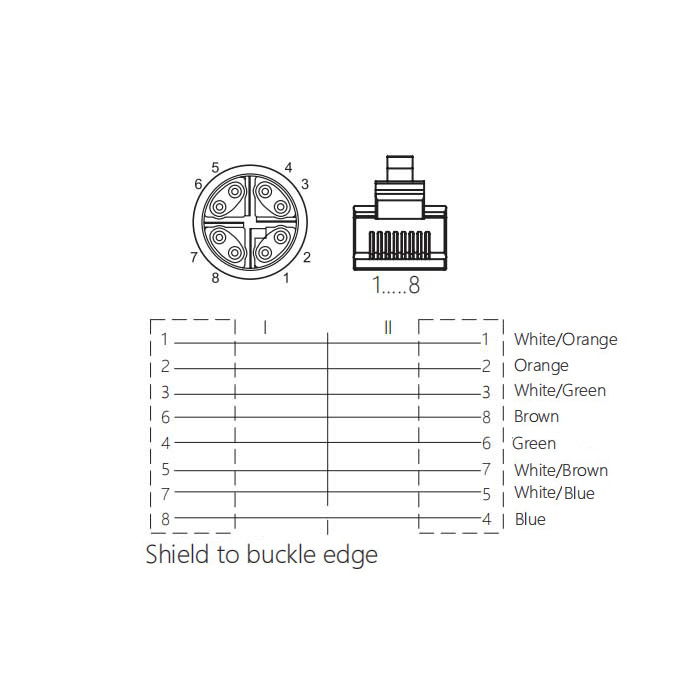

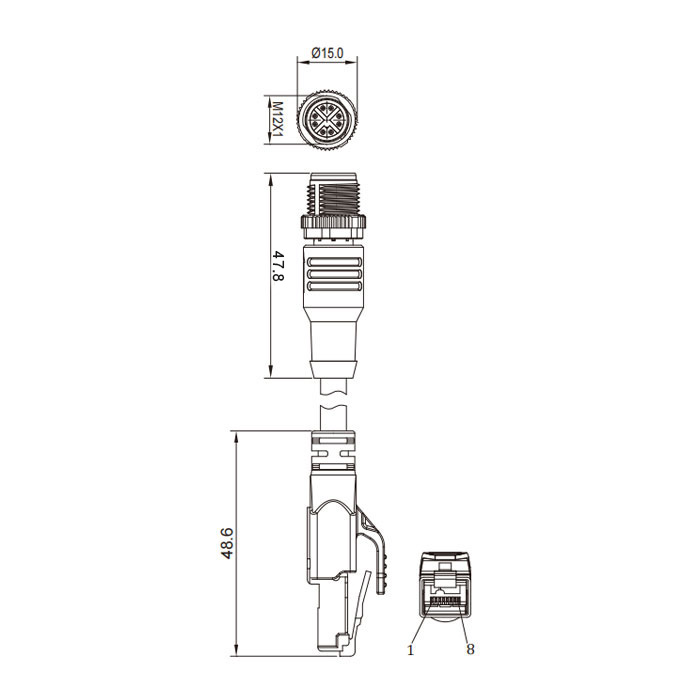

TypeM12 straight male (8 Pin、X-coded）conversion to RJ45 straight male
Rated working voltage UB60 V AC/DC
Cable color/materialGreen/TPE（shield）
Number of conductors x conductor cross-section4×2×24 AWG
Degree of protection as per IEC 60529IP67/IP20
Ambient temperature Ta-25...+70 °C
