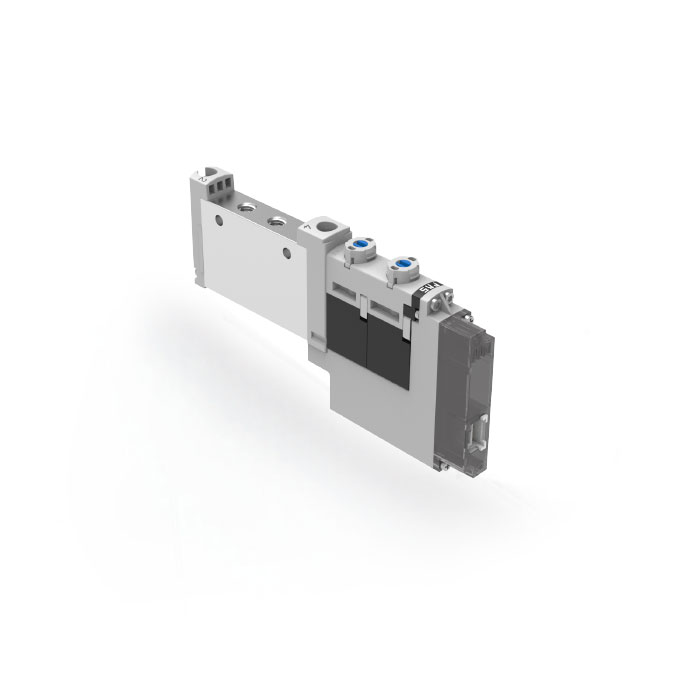

| Type | In-line valve M5（IP20-terminal type） | ||||||||||||
| Valve function | 2x3/2-way valve，normally closed, pneumatic reset | ||||||||||||
| Pilot air source | Internal pilot | ||||||||||||

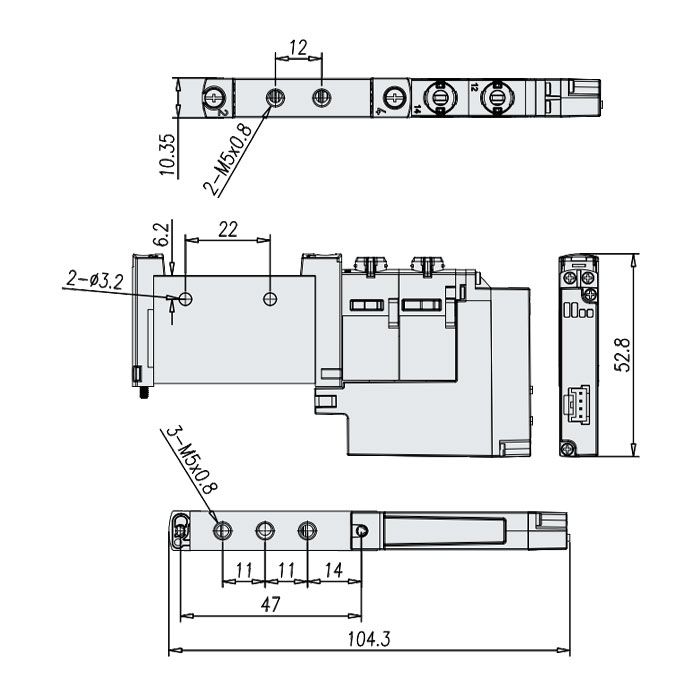

| Illustrate | M5 x 0.8 thread air supply port/work port/exhaust port | ||||||||||||
| Main technical parameters | |||||||||||||
| Valve function | 3/2-way valve | 5/2-way valve | 5/3-way valve | ||||||||||
| Normal position | C1) | U2) | H4) | C1) | U2) | H4) | - | - | - | C1) | U2) | E3) | |
| Pneumatic reset | Yes | No | Yes | - | No | - | |||||||
| Spring return | No | Yes | Yes | - | Yes | Yes | |||||||
| Vacuum operation, port 1 | No | Only suitable for external pilot air supply | |||||||||||
| Structural features | Piston slide valve | ||||||||||||
| Sealing principle | Soft seal | ||||||||||||
| Drive mode | Electric drive | ||||||||||||
| Control method | Pilot control | ||||||||||||
| Pilot air source | Internal or external pilot | ||||||||||||
| Exhaust function | Can be throttled | ||||||||||||
| Hand control device | Push-button/locking or locking | ||||||||||||
| Installation method | Optional via through hole or manifold plate | ||||||||||||
| Installation location | Arbitrary | ||||||||||||
| Nominal diameter [mm] | 2.7 | 1.9 | 1.8 | 3.2 | 2.2 | 3.2 | |||||||
| Standard rated flow [l/min] | 150 | 135 | 135 | 135 | 220 | 220 | 210 | ||||||
| Flow rate on manifold plate [l/min] | 150 | 135 | 125 | 125 | 220 | 190 | 210 | ||||||
| Switching time, on/off [ms] | 6/15 | 8/11 | 7/17 | - | 8/24 | 11/30 | |||||||
| Conversion time [m s] | - | 7 | - | 14 | |||||||||
| Specification [mm] | 10 | ||||||||||||
| Interface 1, 2, 3, 4, 5 | M5 | ||||||||||||
| Interface 12/14 | M3 | ||||||||||||
| Corrosion resistance grade CRC | 2 | ||||||||||||
1) C=Normally closed/mid-closed 2) U=Normally open/mid-position pressurised 3) E=Mid-position exhausted 4) H=2x 3/2-way valve integrated in one housing with 1x normally closed and 1x normally open | |||||||||||||
| Pin assignment | |||||||||||||
| Terminal block, 4 Pin | |||||||||||||
| 1. Brown，DO(Coil 14 -)，Coil 14 | ||||||||||||
| 2. Blue，DO(Coil 14 +)，Coil 14 | |||||||||||||
| 3. White，DO(Coil 12 -)，Coil 12 | |||||||||||||
| 4. Black，DO(Coil 12 +)，Coil 12 | |||||||||||||
| Working and environmental conditions | |||||||||||||
| Valve function | 3/2-way valve1） | 3/2-way valve3） | 5/2-way valve2） | 5/2-way valve | 5/2-way valve3） | 5/3-way valve | |||||||
| Working medium | Compressed air according to ISO 8573-1:2010 [7:4:4] | ||||||||||||
| Work pressure: Internal pilot [MPa] | 0.15…0.8 | 0.25…0.8 | 0.25…0.8 | 0.15... 0.8 | 0.3…0.8 | 0.3…0.8 | |||||||
| Work pressure: Internal pilot [bar] | 1.5…8 | 2.5...8 | 2.5...8 | 1.5…8 | 3...8 | 3…8 | |||||||
| Work pressure: External pilot [MPa] | 0.15…1 | –0.09…1 | –0.09…0.8 | –0.09…1 | |||||||||
| Work pressure: External pilot [bar] | 1.5…10 | –0.9…10 | –0.9…8 | –0.9…10 | |||||||||
| Pilot pressure [MPa] | 0.15…0.8 | 0.2…0.8 | 0.25...0.8 | 0.15…0.8 | 0.3…0.8 | ||||||||
| Pilot pressure [bar] | 1.5 … 8 | 2...8 | 2.5...8 | 1.5…8 | 3…8 | ||||||||
| Ambient temperature [°C] | –5 … +50, with holding current drop；–5 … +60 | ||||||||||||
| Medium temperature [°C] | –5 … +50, with holding current drop；–5 … +60 | ||||||||||||
1) Pneumatic reset 2) Mix, pneumatic reset/spring return 3) Spring return | |||||||||||||
| Electrical parameters | |||||||||||||
| Electrical interface | Push-in terminal | ||||||||||||
| Working voltage [VDC] | 24 ±10% | ||||||||||||
| Power consumption [W] | 1/0.4 (25ms later) | ||||||||||||
| Duty cycle [%] | 100 | ||||||||||||
| Protection class according to EN 60529 | IP20 | ||||||||||||
| Material information | |||||||||||||
| Case | Forged aluminum alloy | ||||||||||||
| Seals | HNBR, NBR | ||||||||||||
| Material Notes | RoHS Compliance | ||||||||||||
| Standard for paint wetting defect substances | VDMA24364-B1/B2-L | ||||||||||||
