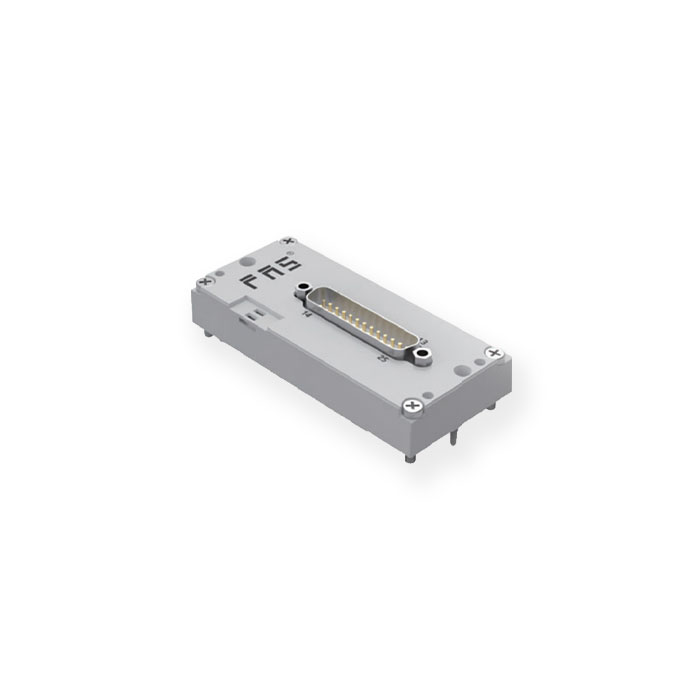

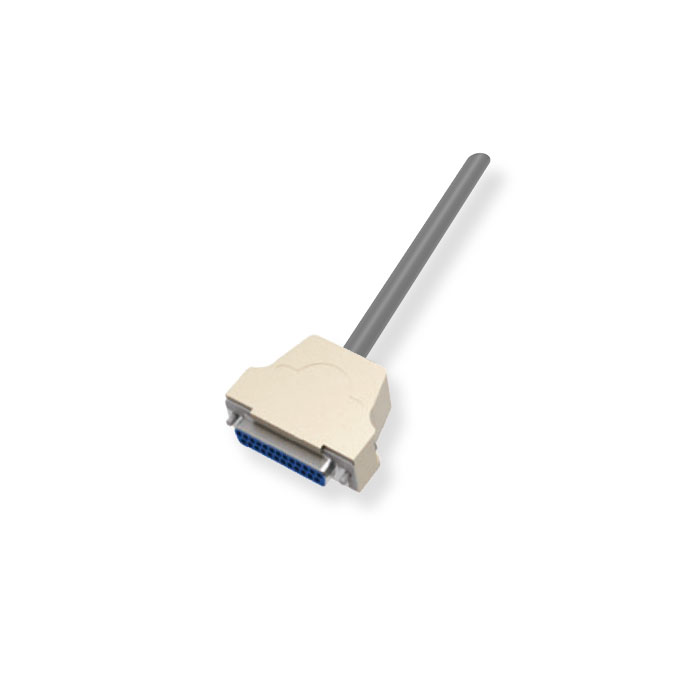

Multi-pin interface type、D-SUB (25-pin)、M1-25、FVD-L1-F-25、VD0040
  • Multi-pin interface type、D-SUB (25-pin)、M1-25、FVD-L1-F-25、VD0040

Multi-pin interface type、D-SUB (25-pin)、M1-25、FVD-L1-F-25、VD0040

Ordering code: VD0040
Series: FVD-L1-F-25
  • Multi-pin interface type: Sub-D (25-pin)/Sub-D (44-pin);

  • Each pin on a multi-pin plug drives a solenoid;

  • If up to 16 valve positions can be configured, this means that up to 32 valve coils can be assigned addresses;

  • NOTE: A dual solenoid valve occupies one valve position and two pins on the multi-pin plug. This means that the number of double solenoid valves per manifold plate is limited.

Parameter Table Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video
Number of pins25Pins
Electrical connectionD-SUB plug
Maximum number of valves16
Protection level, according to EN60529IP 40
MaterialPA
Material considerationsRoHS compliant
Corrosion resistance level CRC2


Pin assignment - D-Sub plug, 25-pin


Pin

      1)

Wire color

M1-25

M1-25V1

12x Double  solenoidSingle  solenoid12x Double  solenoidSingle  solenoid


1WH VP014VP014VP014VP014
2BN VP0 12/ /VP0 12/ /
3GN VP114VP114VP114VP114
4YE VP112//VP112//
5GY VP2 14VP2 14VP2 14VP214
6PK VP2 12//VP212//
7BU VP3 14VP3 14VP314VP314
8RD VP3 12//VP3 12//
9BK VP4 14VP4 14VP414VP4 14
10VT VP4 12//VP4 12/ /
11GY PK VP5 14VP5 14VP514VP514
12RD BU VP5 12//VP512//
13GN WH VP6 14VP6 14ComCom
14BN GN VP6 12/ /VP614VP614
15YE WH VP7 14VP714VP6 12/ /
16BN YE VP7 12//VP714VP714
17GY WH VP8 14VP814VP7 12//
18BN GY VP8 12//VP814VP814
19WH PK VP9 14VP914VP812//
20BN PK VP9 12//VP914VP9 14
21BU WHVP1014VP1014VP912//
22BN BUVP1012//VP1014VP1014
23RD WHVP1114VP1114VP1012//
24BN RDVP1112//VP1114VP1114
25BK WHCom
Com
VP1112//
-
